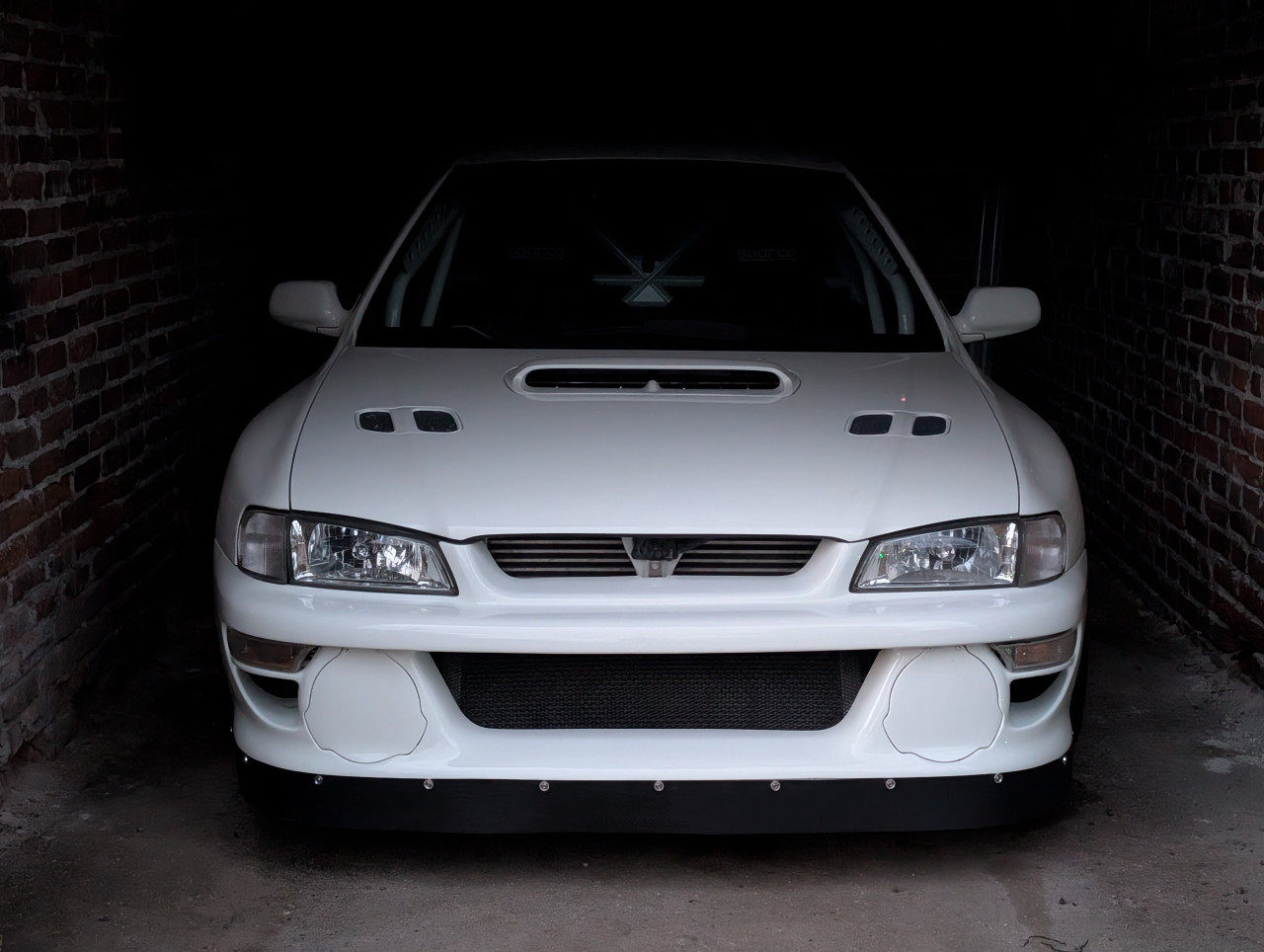

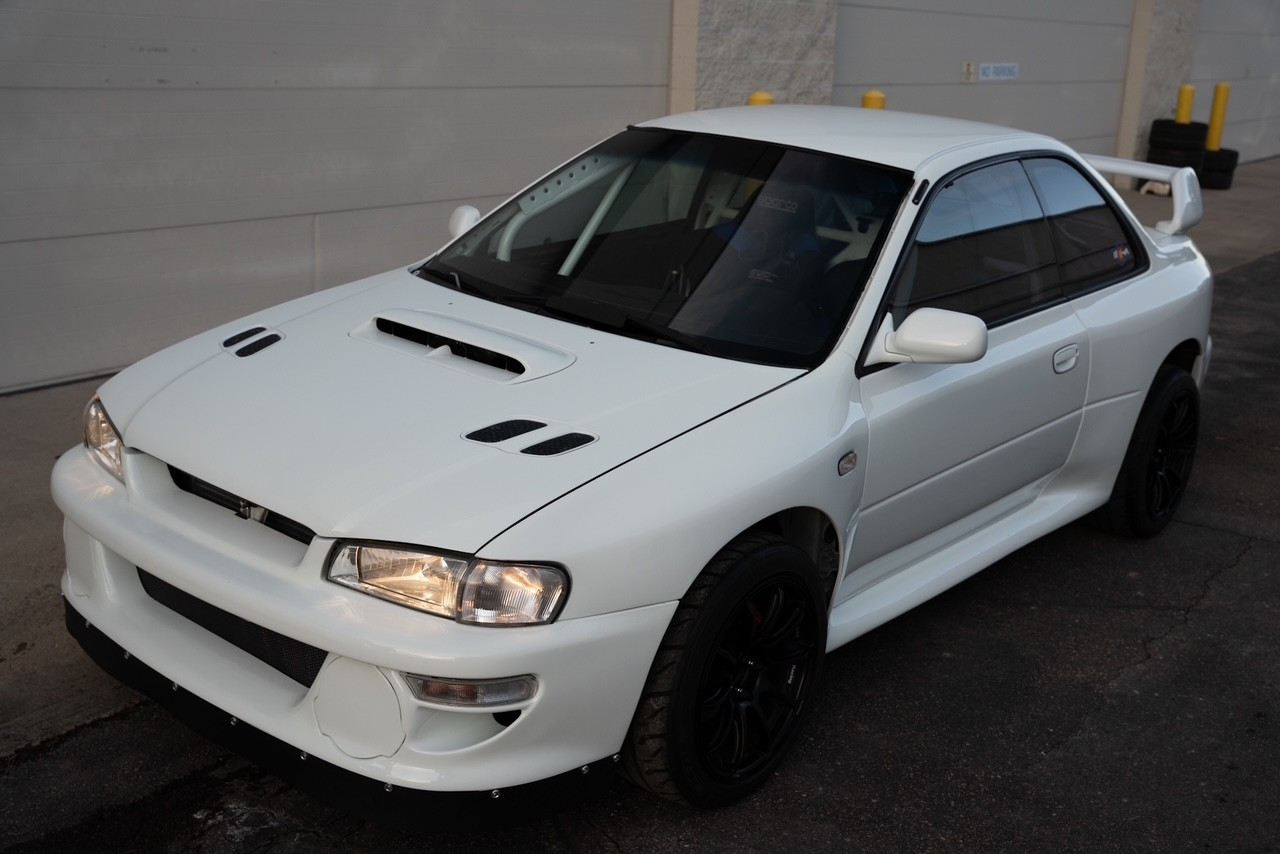

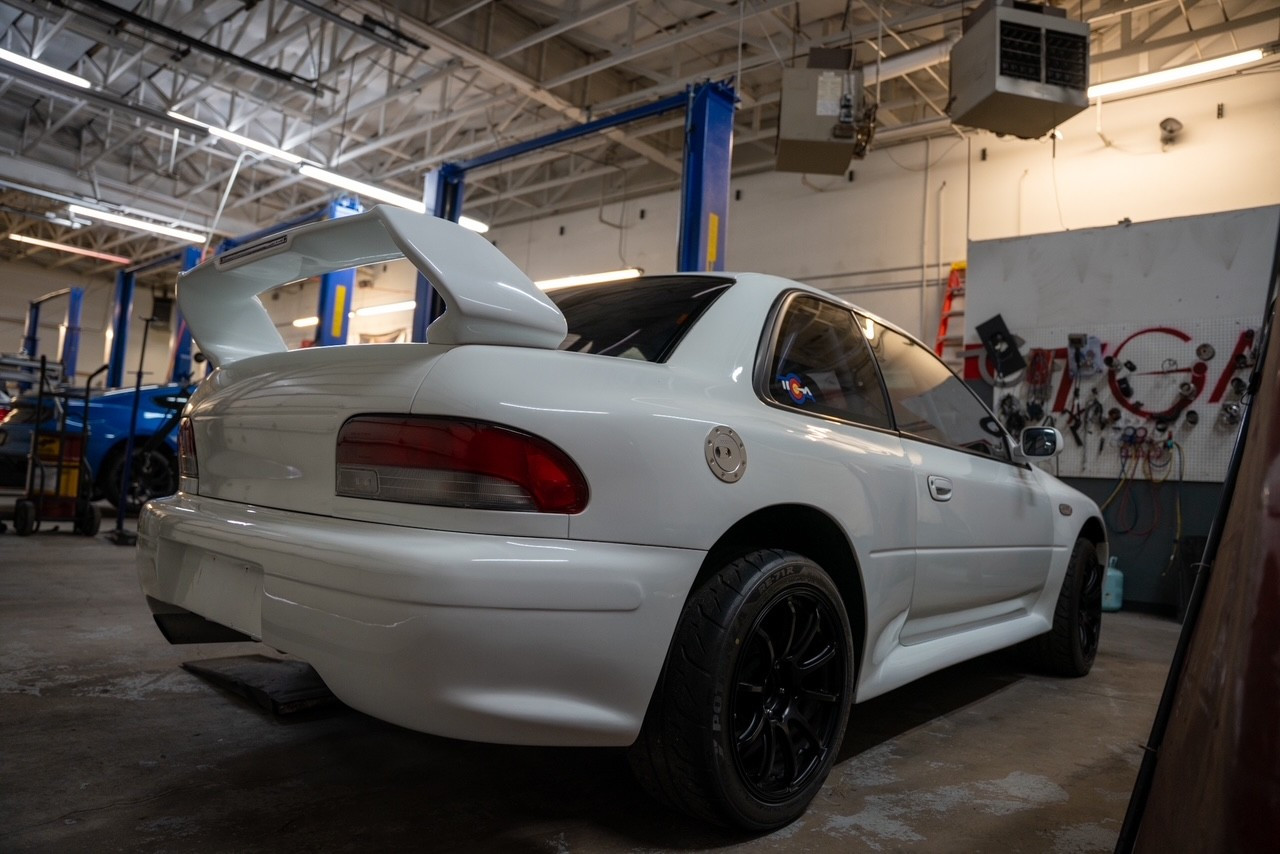

2001 Impreza 2.5RS Carbon Fiber Widebody
Robert C :: Member #1
Car Description:
2600lbs dry.

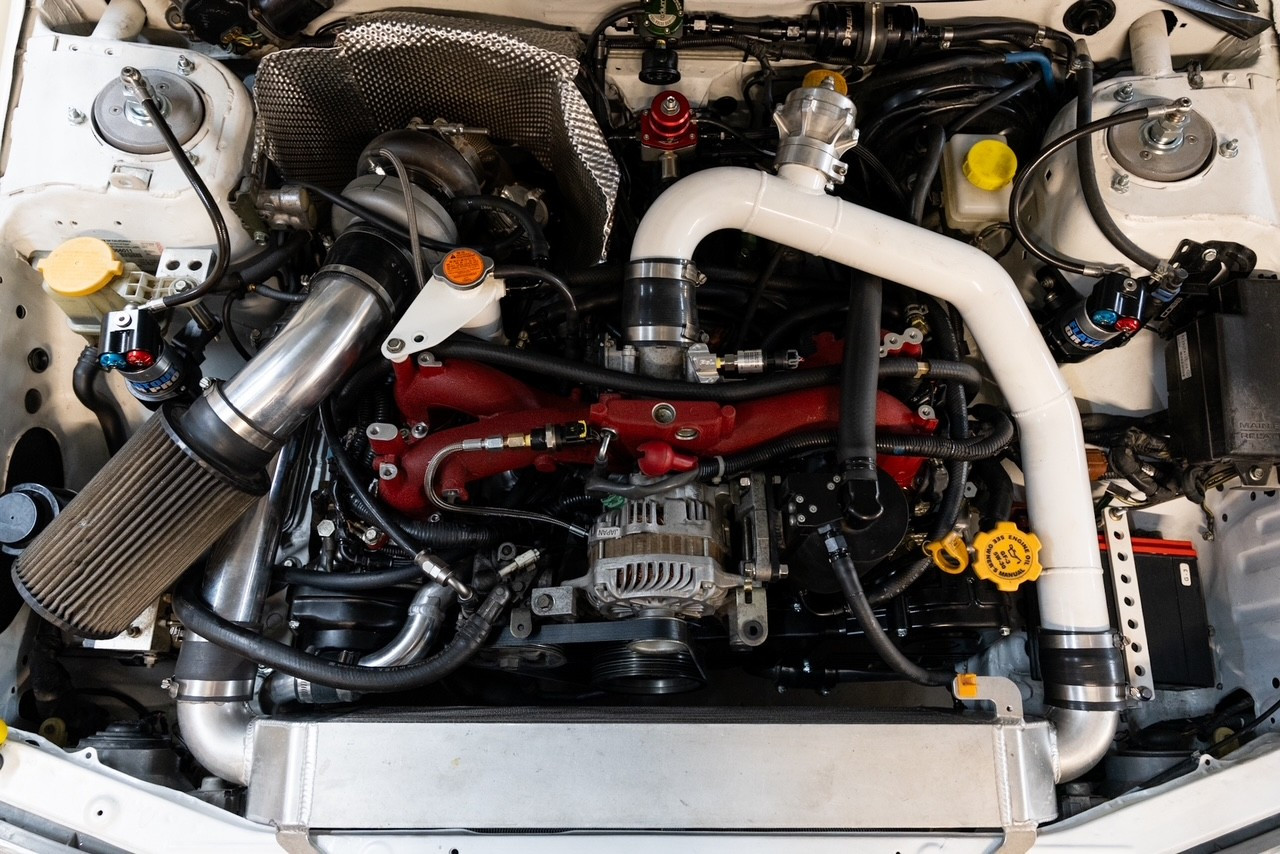

Motor:
- IAG 950 EJ25 Closed Deck Short Block
- V-Casting STI Cylinder Heads
- IAG ARP 14mm Head Studs
- IAG Fire-Lock Head Gaskets
- GSC Billet Stage 1 Camshafts
- IAG Beehive Valve Springs w/ Titanium Retainers
- GSC 36mm Intake / 32mm Exhaust Valves
- Kelford DLC Valve Adjustment Buckets
- IAG/RCM Alloy Camshaft Sprocket Kit
- IAG Adjustable Timing Idler Kit
- IAG Stage 2 11mm Oil Pump
- Calico Coated Bearings
- ARP Crankcase Bolt Kit
- Xona XRC 6464S X2C Turbo w/ 1.03 Hotside
- Killer B Motorsport Holy Header
- Custom Downpipe + Uppipe
- Custom Turbo Kit Fabrication (flanges, EWG recirc into downpipe)
- STI Oil Cooler
- LIC Air Pump Delete
- Process West V-Mount Intercooler
- ATL 15gal Fuel Cell w/ Custom Brackets
- AEM 340lph Fuel Pump
- Walbro 450lph High Pressure Pump
- Radium Surge Tank
- ID1700cc Injectors
- Injector Dynamics Fuel Rails
- Aeromotive Adjustable Fuel Pressure Regulator 40-75 PSI -6AN
- 6 Micron Fuel Lab Filter
Engine Management:
- Haltech R3 ECU w/ Patch Harness by P&L
- Haltech WB1 Single Channel CAN Wideband O2
- Haltech Can 8 Keypad
- Bosch Oil Temp / Pressure Sensor
- AEM 3.5 BAR MAP Sensor (50 PSI)
- Custom Haltech Tune by Jake at TGA
Drivetrain:
- STI 6-Speed Transmission — Rebuilt by ZF Design
- Billet 1-6 Shift Fork Upgrade
- Billet Shift Selector
- Short Ratio STI 3rd Gear
- Short 4th Gear (04-06 STI)
- 4-6 Carbon Synchro Upgrade
- Billet STI Transfer Gears / Output Shaft (OEM size)
- 04-05 STI DCCD Center Differential
- MapDCCD Controller
- iWire DCCD Install (Haltech integration)
- Cusco Rear Differential (new)
- STI 3.9 Rear Ring and Pinion
Handling:
- Flatout GR40-PRO Suspension
- Advan Racing 17x9.5
- Bridgestone RE71R
- Whiteline Adjustable Trailing Arms
- Tubular Front Subframe
- Tubular Rear Subframe
- AP Racing Hydraulic Handbrake w/ Tandem Cylinder
- Subaru 4 Pot Brake Calipers (4-corner)
Exterior:
- Aerosim Carbon Fiber Body Kit
- Aerosim Carbon Fiber Roof
- Seibon Carbon Fiber Doors
- Seibon Carbon Fiber Trunk + Wing
Interior:
- Full Roll Cage
- Sparco Evo Seats
- Sparco Seat Pads
- Sparco Harnesses
- Carbon Fiber Door Cards
Originally built by Renner Racing Development and brought back to life by TGA Performance in 2026.
